Specialization for point_. More...

#include <STK_ITContainer.h>

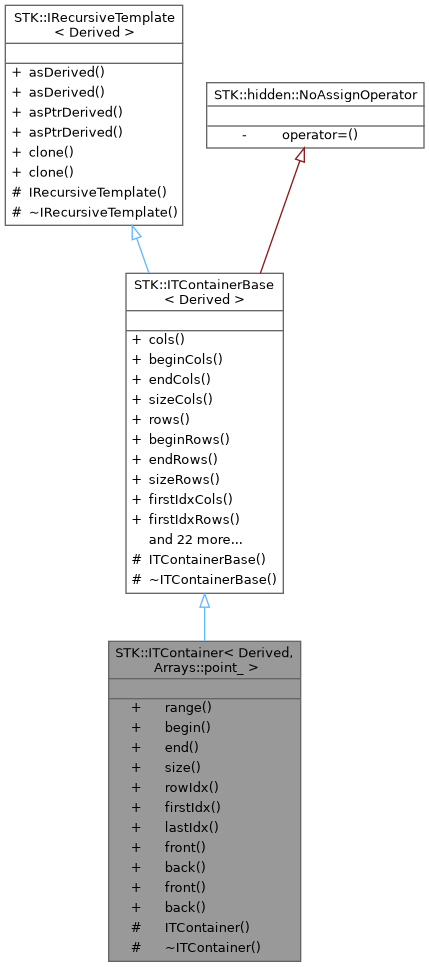

Inheritance diagram for STK::ITContainer< Derived, Arrays::point_ >:

Public Types
enum	{ structure_ = hidden::Traits<Derived>::structure_ , orient_ = hidden::Traits<Derived>::orient_ , sizeRows_ = hidden::Traits<Derived>::sizeRows_ , sizeCols_ = hidden::Traits<Derived>::sizeCols_ , storage_ = hidden::Traits<Derived>::storage_ }

typedef ITContainerBase< Derived >	Base

typedef hidden::Traits< Derived >::Type	Type

typedef hidden::Traits< Derived >::TypeConst	TypeConst

typedef TRange< sizeRows_ >	RowRange
	Type of the Range for the rows.

typedef TRange< sizeCols_ >	ColRange
	Type of the Range for the columns.

Public Types inherited from STK::ITContainerBase< Derived >
enum	{ structure_ = hidden::Traits<Derived>::structure_ , orient_ = hidden::Traits<Derived>::orient_ , sizeRows_ = hidden::Traits<Derived>::sizeRows_ , sizeCols_ = hidden::Traits<Derived>::sizeCols_ , storage_ = hidden::Traits<Derived>::storage_ }

typedef IRecursiveTemplate< Derived >	Base

typedef hidden::Traits< Derived >::Type	Type

typedef hidden::Traits< Derived >::TypeConst	TypeConst

typedef TRange< sizeRows_ >	RowRange
	Type of the Range for the rows.

typedef TRange< sizeCols_ >	ColRange
	Type of the Range for the columns.

Public Member Functions
ColRange const &	range () const

int	begin () const

int	end () const

int	size () const

int	rowIdx () const

int	firstIdx () const

int	lastIdx () const

TypeConst	front () const

TypeConst	back () const

Type &	front ()

Type &	back ()

Public Member Functions inherited from STK::ITContainerBase< Derived >
ColRange const &	cols () const

int	beginCols () const

int	endCols () const

int	sizeCols () const

RowRange const &	rows () const

int	beginRows () const

int	endRows () const

int	sizeRows () const

int	firstIdxCols () const

int	firstIdxRows () const

int	lastIdxCols () const

int	lastIdxRows () const

RowRange const &	rangeRowsInCol (int) const

ColRange const &	rangeColsInRow (int) const

bool	empty () const

int	size () const

TypeConst	elt (int i, int j) const

TypeConst	elt (int i) const

TypeConst	elt () const

Type &	elt (int i, int j)

Type &	elt (int i)

Type &	elt ()

TypeConst	at (int i, int j) const

TypeConst	at (int i) const

Type &	at (int i, int j)

Type &	at (int i)

TypeConst	operator() (int i, int j) const

Type &	operator() (int i, int j)

TypeConst	operator[] (int i) const

Type &	operator[] (int i)

TypeConst	operator() () const

Type &	operator() ()

Public Member Functions inherited from STK::IRecursiveTemplate< Derived >
Derived &	asDerived ()
	static cast : return a reference of this with a cast to the derived class.

Derived const &	asDerived () const
	static cast : return a const reference of this with a cast to the derived class.

Derived *	asPtrDerived ()
	static cast : return a ptr on a `Derived` of this with a cast to the derived class.

Derived const *	asPtrDerived () const
	static cast : return a ptr on a constant `Derived` of this with a cast to the derived class.

Derived *	clone () const
	create a leaf using the copy constructor of the Derived class.

Derived *	clone (bool isRef) const
	create a leaf using the copy constructor of the Derived class and a flag determining if the clone is a reference or not.

Protected Member Functions
	ITContainer ()
	default constructor.

	~ITContainer ()
	destructor.

Protected Member Functions inherited from STK::ITContainerBase< Derived >
	ITContainerBase ()
	Default constructor.

	~ITContainerBase ()
	destructor.

Protected Member Functions inherited from STK::IRecursiveTemplate< Derived >
	IRecursiveTemplate ()
	constructor.

	~IRecursiveTemplate ()
	destructor.

Detailed Description

template<class Derived>
class STK::ITContainer< Derived, Arrays::point_ >

Specialization for point_.

Definition at line 925 of file STK_ITContainer.h.

Member Typedef Documentation

◆ Base

template<class Derived >

typedef ITContainerBase<Derived> STK::ITContainer< Derived, Arrays::point_ >::Base

Definition at line 928 of file STK_ITContainer.h.

◆ ColRange

template<class Derived >

typedef TRange<sizeCols_> STK::ITContainer< Derived, Arrays::point_ >::ColRange

Type of the Range for the columns.

Definition at line 942 of file STK_ITContainer.h.

◆ RowRange

template<class Derived >

typedef TRange<sizeRows_> STK::ITContainer< Derived, Arrays::point_ >::RowRange

Type of the Range for the rows.

Definition at line 940 of file STK_ITContainer.h.

◆ Type

template<class Derived >

typedef hidden::Traits<Derived>::Type STK::ITContainer< Derived, Arrays::point_ >::Type

Definition at line 929 of file STK_ITContainer.h.

◆ TypeConst

template<class Derived >

typedef hidden::Traits<Derived>::TypeConst STK::ITContainer< Derived, Arrays::point_ >::TypeConst

Definition at line 930 of file STK_ITContainer.h.

Member Enumeration Documentation

◆ anonymous enum

template<class Derived >

anonymous enum

Enumerator
structure_
orient_
sizeRows_
sizeCols_
storage_

Definition at line 931 of file STK_ITContainer.h.

    {
      structure_ = hidden::Traits<Derived>::structure_,
      orient_    = hidden::Traits<Derived>::orient_,
      sizeRows_  = hidden::Traits<Derived>::sizeRows_,
      sizeCols_  = hidden::Traits<Derived>::sizeCols_,
      storage_   = hidden::Traits<Derived>::storage_
    };

Constructor & Destructor Documentation

◆ ITContainer()

template<class Derived >

STK::ITContainer< Derived, Arrays::point_ >::ITContainer ( )

inlineprotected

default constructor.

Definition at line 946 of file STK_ITContainer.h.

946: Base() {}

STK::ITContainer< Derived, Arrays::point_ >::Base

ITContainerBase< Derived > Base

Definition STK_ITContainer.h:928

◆ ~ITContainer()

template<class Derived >

STK::ITContainer< Derived, Arrays::point_ >::~ITContainer ( )

inlineprotected

destructor.

Definition at line 948 of file STK_ITContainer.h.

948{}

Member Function Documentation

◆ back() [1/2]

template<class Derived >

Type & STK::ITContainer< Derived, Arrays::point_ >::back ( )

inline

Returns: the last element

Definition at line 977 of file STK_ITContainer.h.

977{ return this->elt(lastIdx());}

STK::ITContainerBase::elt

TypeConst elt() const

Definition STK_ITContainer.h:200

STK::ITContainer< Derived, Arrays::point_ >::lastIdx

int lastIdx() const

Definition STK_ITContainer.h:967

◆ back() [2/2]

template<class Derived >

TypeConst STK::ITContainer< Derived, Arrays::point_ >::back ( ) const

inline

Returns: the last element

Definition at line 972 of file STK_ITContainer.h.

972{ return this->elt(lastIdx());}

◆ begin()

template<class Derived >

int STK::ITContainer< Derived, Arrays::point_ >::begin ( ) const

inline

Returns: the index of the first element

Definition at line 954 of file STK_ITContainer.h.

954{ return range().begin();}

STK::ITContainer< Derived, Arrays::point_ >::range

ColRange const & range() const

Definition STK_ITContainer.h:952

◆ end()

template<class Derived >

int STK::ITContainer< Derived, Arrays::point_ >::end ( ) const

inline

Returns: the ending index of the elements

Definition at line 956 of file STK_ITContainer.h.

956{ return range().end();}

◆ firstIdx()

template<class Derived >

int STK::ITContainer< Derived, Arrays::point_ >::firstIdx ( ) const

inline

Returns: the first index of the point

Definition at line 965 of file STK_ITContainer.h.

965{ return begin();}

STK::ITContainer< Derived, Arrays::point_ >::begin

int begin() const

Definition STK_ITContainer.h:954

◆ front() [1/2]

template<class Derived >

Type & STK::ITContainer< Derived, Arrays::point_ >::front ( )

inline

Returns: the first element

Definition at line 975 of file STK_ITContainer.h.

975{ return this->elt(firstIdx());}

STK::ITContainer< Derived, Arrays::point_ >::firstIdx

int firstIdx() const

Definition STK_ITContainer.h:965

◆ front() [2/2]

template<class Derived >

TypeConst STK::ITContainer< Derived, Arrays::point_ >::front ( ) const

inline

Returns: the first element

Definition at line 970 of file STK_ITContainer.h.

970{ return this->elt(firstIdx());}

◆ lastIdx()

template<class Derived >

int STK::ITContainer< Derived, Arrays::point_ >::lastIdx ( ) const

inline

Returns: the last index of the vector

Definition at line 967 of file STK_ITContainer.h.

967{ return end()-1;}

STK::ITContainer< Derived, Arrays::point_ >::end

int end() const

Definition STK_ITContainer.h:956

◆ range()

template<class Derived >

ColRange const & STK::ITContainer< Derived, Arrays::point_ >::range ( ) const

inline

Returns: the range of the container

Definition at line 952 of file STK_ITContainer.h.

952{ return this->asDerived().cols();}

STK::IRecursiveTemplate::asDerived

Derived & asDerived()

static cast : return a reference of this with a cast to the derived class.

Definition STK_IRecursiveTemplate.h:68

◆ rowIdx()

template<class Derived >

int STK::ITContainer< Derived, Arrays::point_ >::rowIdx ( ) const

inline

Returns: the index of the row of the point

Definition at line 961 of file STK_ITContainer.h.

961{ return this->beginRows();}

STK::ITContainerBase::beginRows

int beginRows() const

Definition STK_ITContainer.h:142

◆ size()

template<class Derived >

int STK::ITContainer< Derived, Arrays::point_ >::size ( ) const

inline

Returns: the size of the container

Definition at line 958 of file STK_ITContainer.h.

958{ return range().size();}

The documentation for this class was generated from the following file:

STK_ITContainer.h
