STK::StructuredCAllocator< Derived, 1, SizeCols_ > Class Template Reference

specialization for the point_ case (derived class is a RowVector). More...

#include <STK_CAllocator.h>

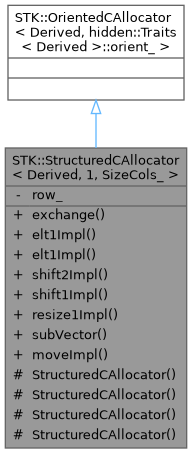

Inheritance diagram for STK::StructuredCAllocator< Derived, 1, SizeCols_ >:

Public Types
enum	{   structure_ = hidden::Traits<Derived>::structure_ , orient_ = hidden::Traits<Derived>::orient_ , sizeRows_ = hidden::Traits<Derived>::sizeRows_ , sizeCols_ = hidden::Traits<Derived>::sizeCols_ ,   sizeProd_ = hidden::Traits<Derived>::sizeProd_ , storage_ = hidden::Traits<Derived>::storage_ }
typedef hidden::Traits< Derived >::Row	Row
typedef hidden::Traits< Derived >::Col	Col
typedef hidden::Traits< Derived >::Type	Type
typedef hidden::Traits< Derived >::TypeConst	TypeConst
typedef OrientedCAllocator< Derived, orient_ >	Base
typedef IContainer2D< sizeRows_, sizeCols_ >	LowBase
typedef hidden::Traits< Derived >::Allocator	Allocator
typedef TRange< sizeRows_ >	RowRange
	Type of the Range for the rows.
typedef TRange< sizeCols_ >	ColRange
	Type of the Range for the columns.
typedef TRange< sizeProd_ >	AllocatorRange
	Type of the Range for the allocator.

Public Member Functions
void	exchange (StructuredCAllocator &T)
	exchange T with this.
TypeConst	elt1Impl (int j) const
Type &	elt1Impl (int j)
void	shift2Impl (int beginRows, int beginCols)
	shift the first indexes of the allocator
void	shift1Impl (int beginCols)
	shift the first column index of the allocator.
Derived &	resize1Impl (int sizeCols)
	resize the allocator.
template<int Size_>
CAllocator< Type, 1, Size_, orient_ >	subVector (TRange< Size_ > const &J) const
void	moveImpl (StructuredCAllocator const &T)
	move T to this.

Protected Member Functions
	StructuredCAllocator (RowRange const &I, ColRange const &J)
	Default constructor.
	StructuredCAllocator (StructuredCAllocator const &A, bool ref)
	copy constructor
template<class OtherDerived , int OtherRows_, int OtherCols_>
	StructuredCAllocator (StructuredCAllocator< OtherDerived, OtherRows_, OtherCols_ > const &A, RowRange const &I, ColRange const &J)
	Reference constructor.
	StructuredCAllocator (Type *const &q, int, int nbCol)
	wrapper constructor for 0 based C-Array

Private Attributes
int	row_
	row of the point (needed when this is a reference)

Detailed Description

template<class Derived, int SizeCols_>
class STK::StructuredCAllocator< Derived, 1, SizeCols_ >

specialization for the point_ case (derived class is a RowVector).

Definition at line 585 of file STK_CAllocator.h.

Member Typedef Documentation

Allocator

template<class Derived , int SizeCols_>

typedef hidden::Traits<Derived>::Allocator STK::StructuredCAllocator< Derived, 1, SizeCols_ >::Allocator

Definition at line 605 of file STK_CAllocator.h.

AllocatorRange

template<class Derived , int SizeCols_>

typedef TRange<sizeProd_> STK::StructuredCAllocator< Derived, 1, SizeCols_ >::AllocatorRange

Type of the Range for the allocator.

Definition at line 612 of file STK_CAllocator.h.

Base

template<class Derived , int SizeCols_>

typedef OrientedCAllocator<Derived, orient_> STK::StructuredCAllocator< Derived, 1, SizeCols_ >::Base

Definition at line 603 of file STK_CAllocator.h.

Col

template<class Derived , int SizeCols_>

typedef hidden::Traits<Derived>::Col STK::StructuredCAllocator< Derived, 1, SizeCols_ >::Col

Definition at line 590 of file STK_CAllocator.h.

ColRange

template<class Derived , int SizeCols_>

typedef TRange<sizeCols_> STK::StructuredCAllocator< Derived, 1, SizeCols_ >::ColRange

Type of the Range for the columns.

Definition at line 610 of file STK_CAllocator.h.

LowBase

template<class Derived , int SizeCols_>

typedef IContainer2D<sizeRows_, sizeCols_> STK::StructuredCAllocator< Derived, 1, SizeCols_ >::LowBase

Definition at line 604 of file STK_CAllocator.h.

Row

template<class Derived , int SizeCols_>

typedef hidden::Traits<Derived>::Row STK::StructuredCAllocator< Derived, 1, SizeCols_ >::Row

Definition at line 589 of file STK_CAllocator.h.

RowRange

template<class Derived , int SizeCols_>

typedef TRange<sizeRows_> STK::StructuredCAllocator< Derived, 1, SizeCols_ >::RowRange

Type of the Range for the rows.

Definition at line 608 of file STK_CAllocator.h.

Type

template<class Derived , int SizeCols_>

typedef hidden::Traits<Derived>::Type STK::StructuredCAllocator< Derived, 1, SizeCols_ >::Type

Definition at line 591 of file STK_CAllocator.h.

TypeConst

template<class Derived , int SizeCols_>

typedef hidden::Traits<Derived>::TypeConst STK::StructuredCAllocator< Derived, 1, SizeCols_ >::TypeConst

Definition at line 592 of file STK_CAllocator.h.

Member Enumeration Documentation

anonymous enum

template<class Derived , int SizeCols_>

anonymous enum

Enumerator
structure_
orient_
sizeRows_
sizeCols_
sizeProd_
storage_

Definition at line 594 of file STK_CAllocator.h.

    {
      structure_ = hidden::Traits<Derived>::structure_,
      orient_    = hidden::Traits<Derived>::orient_,
      sizeRows_  = hidden::Traits<Derived>::sizeRows_,
      sizeCols_  = hidden::Traits<Derived>::sizeCols_,
      sizeProd_  = hidden::Traits<Derived>::sizeProd_,
      storage_   = hidden::Traits<Derived>::storage_
    };

Constructor & Destructor Documentation

StructuredCAllocator() [1/4]

template<class Derived , int SizeCols_>

STK::StructuredCAllocator< Derived, 1, SizeCols_ >::StructuredCAllocator ( RowRange const &  I, ColRange const &  J  )

inlineprotected

Default constructor.

Definition at line 616 of file STK_CAllocator.h.

: Base(I, J), row_(I.begin()) {}

StructuredCAllocator() [2/4]

template<class Derived , int SizeCols_>

STK::StructuredCAllocator< Derived, 1, SizeCols_ >::StructuredCAllocator ( StructuredCAllocator< Derived, 1, SizeCols_ > const &  A, bool  ref  )

inlineprotected

copy constructor

Definition at line 618 of file STK_CAllocator.h.

: Base(A, ref), row_(A.row_) {}

StructuredCAllocator() [3/4]

template<class Derived , int SizeCols_>

template<class OtherDerived , int OtherRows_, int OtherCols_>

STK::StructuredCAllocator< Derived, 1, SizeCols_ >::StructuredCAllocator ( StructuredCAllocator< OtherDerived, OtherRows_, OtherCols_ > const &  A, RowRange const &  I, ColRange const &  J  )

inlineprotected

Reference constructor.

Definition at line 621 of file STK_CAllocator.h.

                               : Base(A, I, J), row_(I.begin())
    {}

StructuredCAllocator() [4/4]

template<class Derived , int SizeCols_>

STK::StructuredCAllocator< Derived, 1, SizeCols_ >::StructuredCAllocator ( Type *const &  q, int  , int  nbCol  )

inlineprotected

wrapper constructor for 0 based C-Array

Definition at line 626 of file STK_CAllocator.h.

: Base(q, 1, nbCol), row_(0) {}

Member Function Documentation

elt1Impl() [1/2]

template<class Derived , int SizeCols_>

Type & STK::StructuredCAllocator< Derived, 1, SizeCols_ >::elt1Impl ( int  j )

inline

Returns

a reference on the element (i,j) of the Allocator.

Parameters

j	index of the columns

Definition at line 643 of file STK_CAllocator.h.

{ return this->elt2Impl(row_,j);}

elt1Impl() [2/2]

template<class Derived , int SizeCols_>

TypeConst STK::StructuredCAllocator< Derived, 1, SizeCols_ >::elt1Impl ( int  j ) const

inline

Returns

a constant reference on the element (i,j) of the Allocator.

Parameters

j	index of the column

Definition at line 639 of file STK_CAllocator.h.

{ return this->elt2Impl(row_,j);}

exchange()

template<class Derived , int SizeCols_>

void STK::StructuredCAllocator< Derived, 1, SizeCols_ >::exchange ( StructuredCAllocator< Derived, 1, SizeCols_ > &  T )

inline

exchange T with this.

Parameters

T	the container to exchange

Definition at line 631 of file STK_CAllocator.h.

    { Base::exchange(T);
      std::swap(row_, T.row_);
    }

moveImpl()

template<class Derived , int SizeCols_>

void STK::StructuredCAllocator< Derived, 1, SizeCols_ >::moveImpl ( StructuredCAllocator< Derived, 1, SizeCols_ > const &  T )

inline

move T to this.

Parameters

T	the container to move

Definition at line 677 of file STK_CAllocator.h.

    { row_ = T.row_;}

resize1Impl()

template<class Derived , int SizeCols_>

Derived & STK::StructuredCAllocator< Derived, 1, SizeCols_ >::resize1Impl ( int  sizeCols )

inline

resize the allocator.

Parameters

sizeCols

the size of the point

Definition at line 663 of file STK_CAllocator.h.

    { this->asDerived().resize2Impl(1, sizeCols);
      row_ = this->beginRows();
      return this->asDerived();
    }

shift1Impl()

template<class Derived , int SizeCols_>

void STK::StructuredCAllocator< Derived, 1, SizeCols_ >::shift1Impl ( int  beginCols )

inline

shift the first column index of the allocator.

Parameters

beginCols

the index of the first column

Definition at line 656 of file STK_CAllocator.h.

    { shift2Impl(beginCols, beginCols);
      row_ = beginCols;
    }

shift2Impl()

template<class Derived , int SizeCols_>

void STK::StructuredCAllocator< Derived, 1, SizeCols_ >::shift2Impl ( int  beginRows, int  beginCols  )

inline

shift the first indexes of the allocator

Parameters

beginRows,beginCols

indexes to set

Definition at line 647 of file STK_CAllocator.h.

    {
      if ((beginRows == this->beginRows())&&(beginCols == this->beginCols())) return;
      LowBase::shift(beginRows, beginCols);
      this->allocator_.shift(this->shiftInc(beginRows, beginCols));
      row_ = beginRows;
    }

subVector()

template<class Derived , int SizeCols_>

template<int Size_>

CAllocator< Type, 1, Size_, orient_ > STK::StructuredCAllocator< Derived, 1, SizeCols_ >::subVector ( TRange< Size_ > const &  J ) const

inline

Returns

a sub-vector in the specified range of the Allocator.

Parameters

J	range of the sub-vector

Definition at line 672 of file STK_CAllocator.h.

    { return Base::template row<Size_>(row_, J);}

Member Data Documentation

row_

template<class Derived , int SizeCols_>

int STK::StructuredCAllocator< Derived, 1, SizeCols_ >::row_

private

row of the point (needed when this is a reference)

Definition at line 682 of file STK_CAllocator.h.

---

The documentation for this class was generated from the following file:

• STK_CAllocator.h
